DYNAMIC SCRUBBERS
DESIGNERS & SUPPLIERS OF COMPLETE PLANTS FOR VENTILATION, DUST AND FUME EXTRACTION.
ENVIROVENT is an integrated solutions provider to the global mining, bulk material handling, mineral processing and beneficiation industries, offering innovative technological solutions as well as process and commodity knowledge along the industry value chains. The services range from system design, through to manufacture, turnkey installations and after-sales service, with expertise provided over a full range of environmental control and pneumatic conveying systems.
ENVIROVENT’s in-house scrubber range for air pollution control is comprehensive, enabling selection of the most cost-effective solution to any dust-control, air-cleaning or product-recovery problem, large or small. Systems are designed, manufactured and supplied as turnkey installation. In-house maintenance teams, specialised technicians and engineers are locally based, including after-sales service.

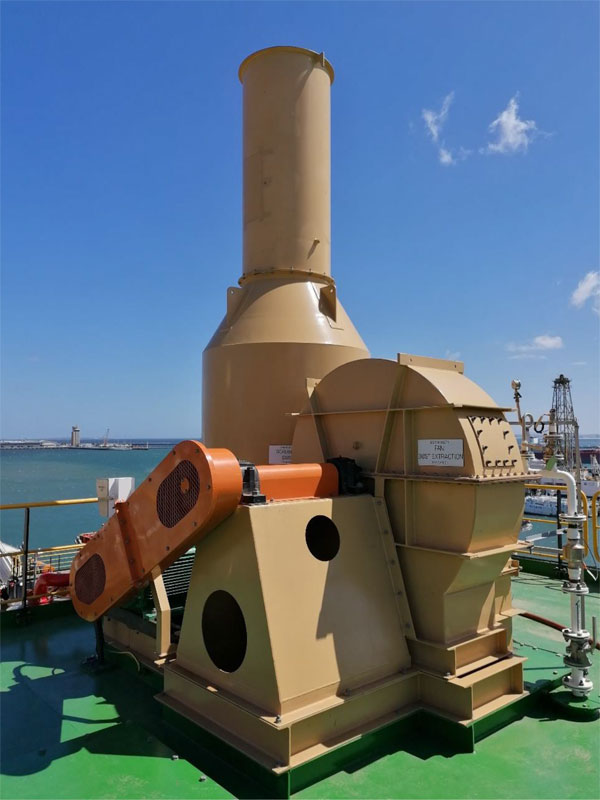

DYNAMIC SCRUBBERS
The Dynamic Scrubber is a three-stage, non-plugging collection system ideally suited for product recovery and dust collection. Dynamic scrubbing involves the use of a wet fan to mix gas, dust and water to an extreme turbulence which forces dust particles into scrubbing liquid.
DYNAMIC SCRUBBER THEORY

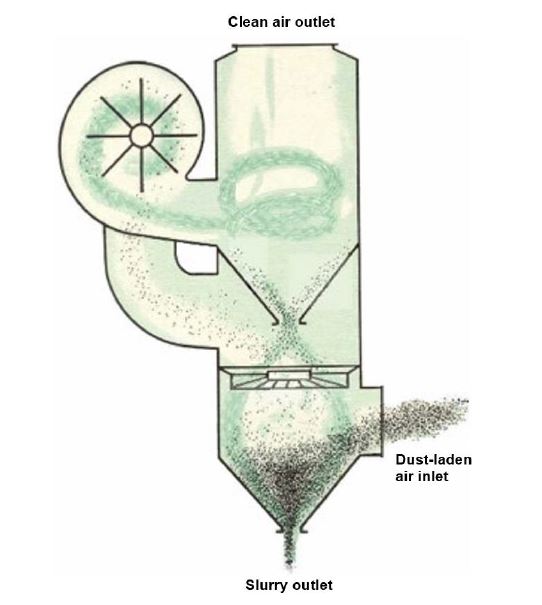

Dust-laden air enters the Dynamic Scrubber tangentially, forcing heavier dust particles into the swirling water and out via the slurry outlet.
Lighter dust particles move through the impingement vane, with the air stream providing an increased wetted surface area for particle impingement. Intermediate size particles are collected here, then flushed through the vanes and out via the slurry outlet.
The air is essentially free of dust particles at this stage and is drawn into the interconnecting fan duct with sufficient liquid to flush clean these internal surfaces.
Scrubbing liquid is introduced into the eye of the radial-bladed fan, causing complete flush cleaning of the internal surfaces of the fan.
Fine dust particles are then captured by turbulent mixing of the liquid and air, the impact of rotating wetted blades and dynamic forces due to high tip speeds, causing impingement of dust particles on the moving layer of water.
At the water elimination stage, the collected clean air and dust liquid mixture discharges tangentially into the droplet separator, where cyclonic action causes separation of the slurry from the clean air. Liquid droplets are centrifuged against the scrubber walls to discharge through an internal cone to the slurry outlet.
The clean air, free of liquid droplets, is discharged vertically through the scrubber stack outlet.
SCRUBBER PRODUCTS

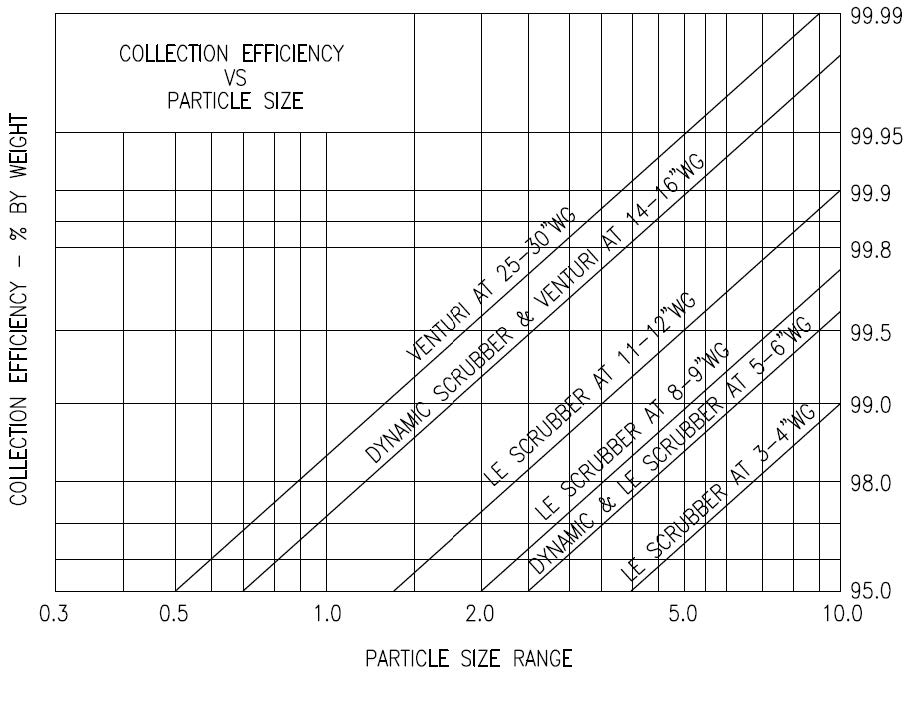

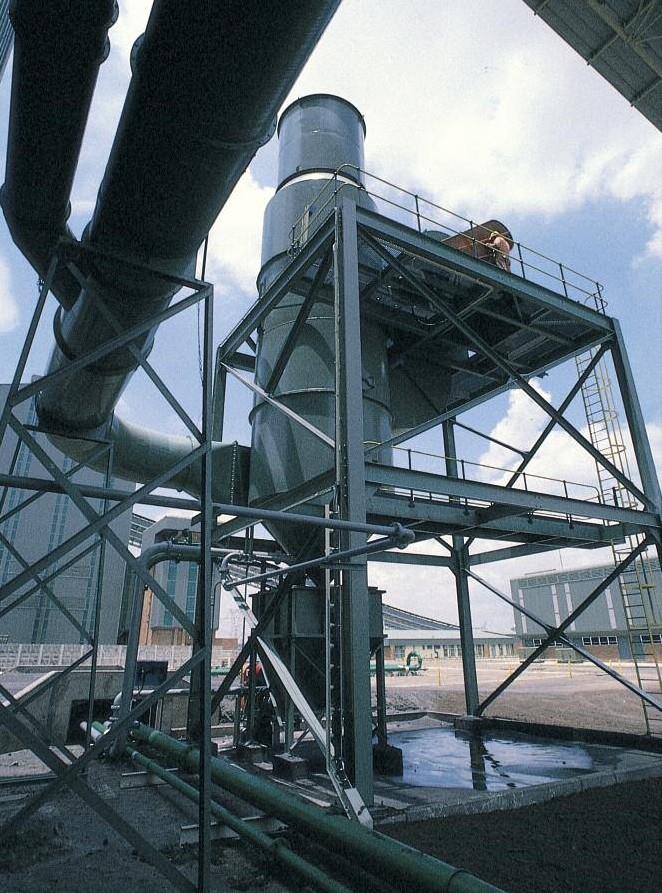

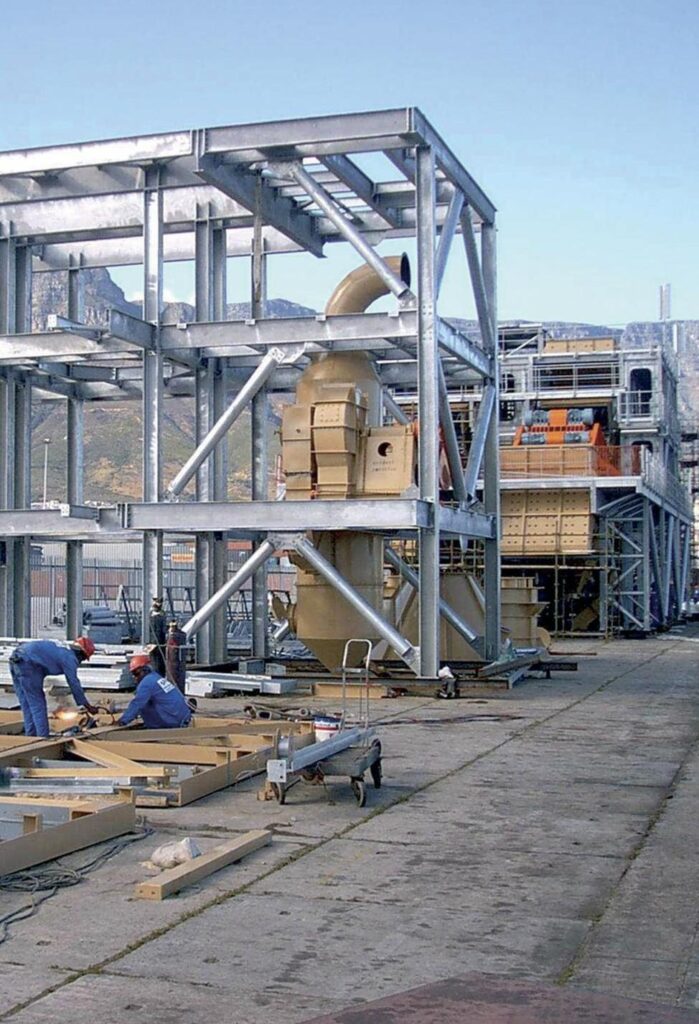

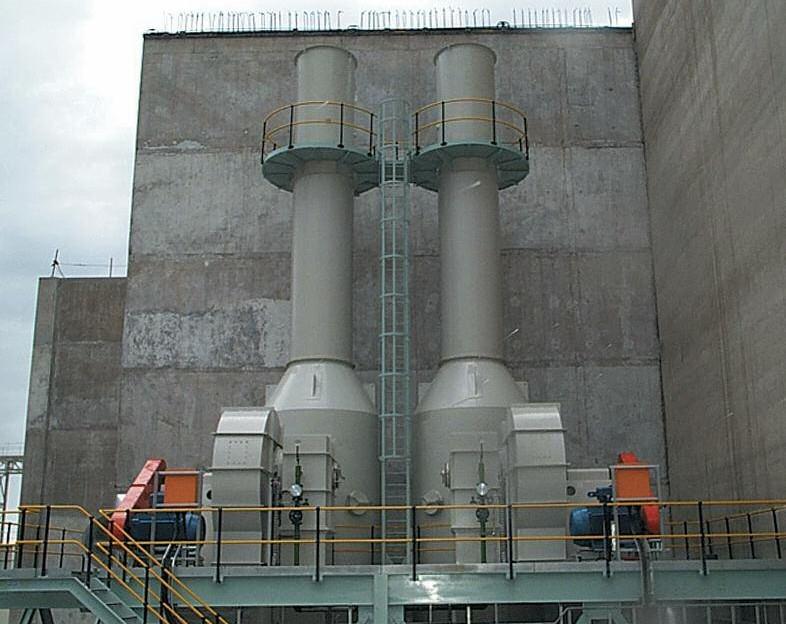

ENVIROVENT offers the UW-4 model, which is the most widely used Dynamic Scrubber. The Dynamic Scrubber offers > 99,5 % dust collection efficiency in the 1 – 2 μm range @ 1,5 kPa pressure loss. It is ideally suited for general dust collection on medium to high dust loads.
ADVANTAGES
✓ Proven design.
✓ Very low cost for high efficiency.
✓ High energy efficiency.
✓ Integral self-cleaning fan.
✓ Low maintenance.
✓ Low water consumption.
