REVERSE PULSE BAG FILTERS
DESIGNERS & SUPPLIERS OF COMPLETE PLANTS FOR VENTILATION, DUST AND FUME EXTRACTION.
ENVIROVENT is an integrated solutions provider to the global mining, bulk material handling, mineral processing and beneficiation industries, offering innovative technological solutions as well as process and commodity knowledge along the industry value chains. The services range from system design, through to manufacture, turnkey installations and after-sales service, with expertise provided over a full range of environmental control and pneumatic conveying systems.
ENVIROVENT’s in-house bag filter range for air pollution control is comprehensive, enabling selection of the most cost-effective solution to any dust-control, air-cleaning or product-recovery problem, large or small. Systems are designed, manufactured and supplied as turnkey installation. In-house maintenance teams, specialised technicians and engineers are locally based, including after-sales service.
REVERSE PULSE BAG FILTERS
The Reverse Pulse Bag Filter is a dust collector of simplistic design that combines high dust collection efficiency and low maintenance under the most arduous operating conditions. The bag filter operation is fully automatic, has no moving parts and all the controls are situated on the outside of the unit.
REVERSE PULSE BAG FILTER THEORY

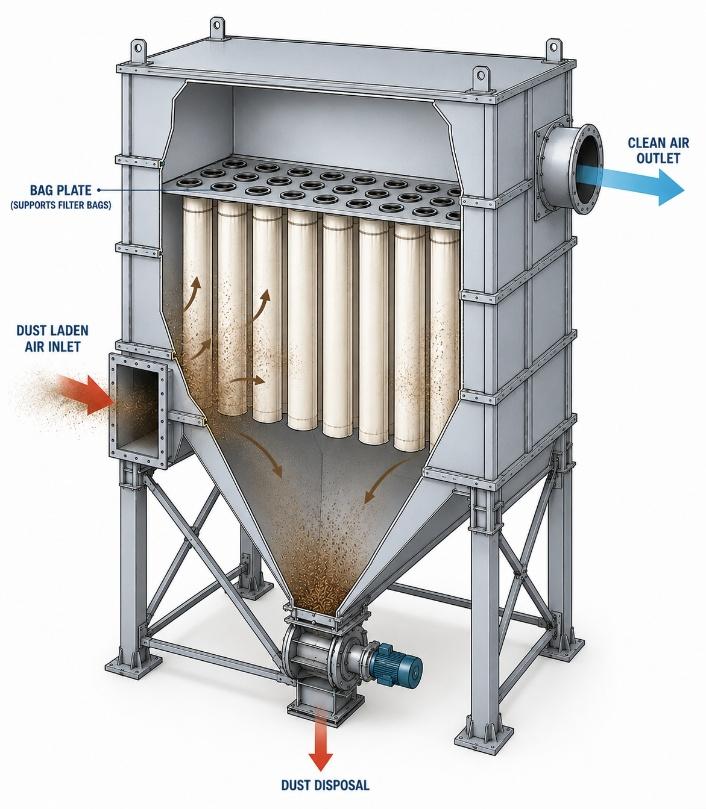

Dust-laden air enters the bottom hopper section, directly onto an inlet air diffuser plate. This diffuser plate changes the direction of flow and reduces the velocity of the particles.
Lower velocities ensure primary drop-out of the heavier particles. The lighter particles move upward in the air stream and onto the external surfaces of the filter bags.
As the dust accumulates on the outside of the filter bags, periodic cleaning is accomplished by introducing a short burst of compressed air delivered through specially designed venturi mounted directly above each filter bag.
The clean air flows through the bag media to the clean air chamber and out to atmosphere.
Dust from the bags after a cleaning cycle falls in a “dust cake” form into the hopper from where it is discharged via a dust disposal system.
Only a fraction of the filter bags are cleaned at one time, under continuous flow through the collector at rated capacities.
The dust collector bags can be readily inspected, checked, maintained or replaced from the clean air plenum.
REVERSE PULSE BAG FILTER PRODUCTS

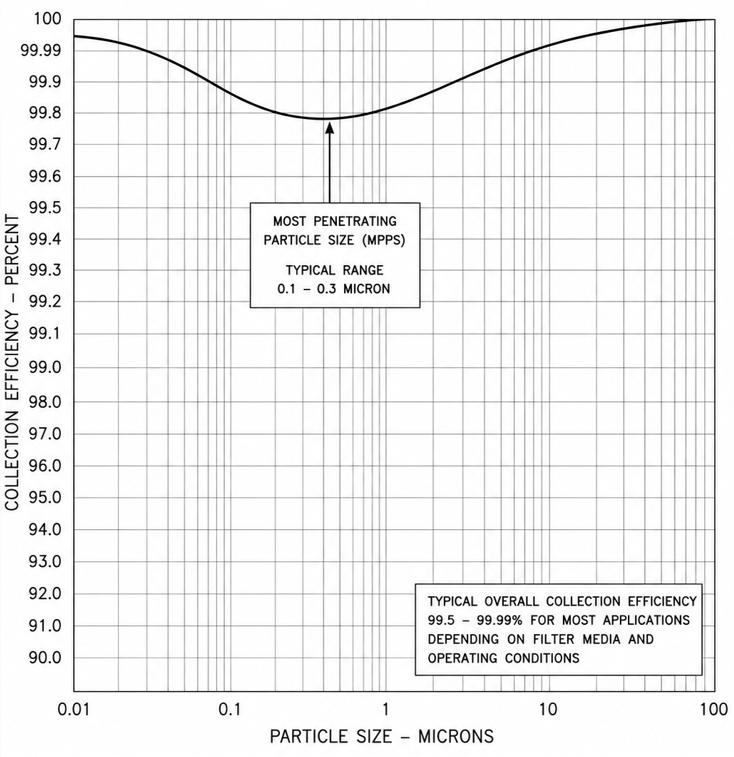

Reverse Pulse Bag Filters handle flow rates from 0,5 to 100 m³/sec. and enable economical collection of dust at high filter rates with collection efficiencies > 99,99 %.
Reverse Pulse Bag Filters have high collection efficiencies, maintained under variable operating conditions by the reverse pulse action, and can operate 24 h/day under arduous conditions.
ADVANTAGES
✓ Proven design.
✓ High filter rates.
✓ High collection efficiency.
✓ No internal moving parts.
✓ Temperature up to 260 °C
SPECIFICATIONS
